Bitumen plays a critical role in modern construction, road paving, waterproofing, and industrial applications. Engineers and contractors carefully evaluate every physical property of bitumen before selecting the right grade for a project. Among all these properties, the softening point of bitumen stands out as one of the most important indicators of temperature resistance and performance.
The softening point determines the temperature at which bitumen starts losing its solid structure and becomes soft under heating conditions. Since roads and industrial surfaces often face extreme temperatures, understanding the softening point helps engineers select durable and high-performance materials.
In addition, the softening point directly affects asphalt stability, rutting resistance, viscosity behavior, pavement durability, and thermal sensitivity. Therefore, manufacturers and suppliers perform this test to maintain quality standards and ensure reliable performance in different climates.
Introduction to Bitumen and Temperature Properties
Bitumen is a black, sticky, and highly viscous petroleum-based material widely used in asphalt pavement and waterproofing systems. It binds aggregates together and creates durable road surfaces. However, bitumen reacts strongly to temperature changes.
At low temperatures, bitumen becomes brittle and stiff. On the other hand, high temperatures soften the material and reduce its resistance to deformation. Because of this behavior, engineers must analyze thermal properties before using bitumen in construction.
Several laboratory tests evaluate temperature-related characteristics. These tests include:
Penetration test
Ductility test
Viscosity test
Flash point test
Softening point test
Among these methods, the ring and ball softening point test remains one of the most widely used procedures worldwide.
What Is the Softening Point of Bitumen?
The softening point of bitumen refers to the temperature at which bitumen softens enough to allow a steel ball to pass through it under standard laboratory conditions.
This temperature does not indicate the exact melting point because bitumen does not have a precise melting temperature. Instead, bitumen gradually changes from a semi-solid state into a viscous liquid as temperature increases.
Therefore, the softening point provides a practical way to measure heat resistance and thermal consistency.
Definition of Softening Point
The softening point is the temperature at which bitumen reaches a certain degree of softness under specified testing conditions using the Ring and Ball apparatus.
Most paving bitumen grades show softening points between:
35°C to 70°C for paving applications
80°C to 150°C for oxidized bitumen
Higher values for polymer modified bitumen
Why Temperature Resistance Matters
Road surfaces continuously absorb heat from sunlight and vehicle friction. If bitumen softens excessively, pavements may develop:
Rutting
Bleeding
Surface deformation
Cracks
Reduced load-bearing capacity
Therefore, selecting bitumen with the appropriate softening point significantly improves pavement life and structural performance.
Importance of Softening Point in Road Construction
The softening point directly affects asphalt pavement quality and long-term durability. Engineers use this value to determine whether the bitumen can withstand local climate conditions.
Role in Asphalt Pavement Performance
High pavement temperatures can weaken asphalt mixtures. Consequently, roads may deform under heavy traffic loads. Bitumen with a higher softening point offers better resistance against these issues.
Moreover, it improves:
Load distribution
Pavement stiffness
Heat stability
Structural integrity
Impact on Durability and Rutting Resistance
Rutting is one of the most common failures in asphalt roads. It occurs when softened bitumen allows aggregate movement under traffic pressure.
However, a higher softening point minimizes this risk because the binder remains stable at elevated temperatures.
As a result, highways, airports, and industrial pavements often require bitumen with enhanced thermal resistance.

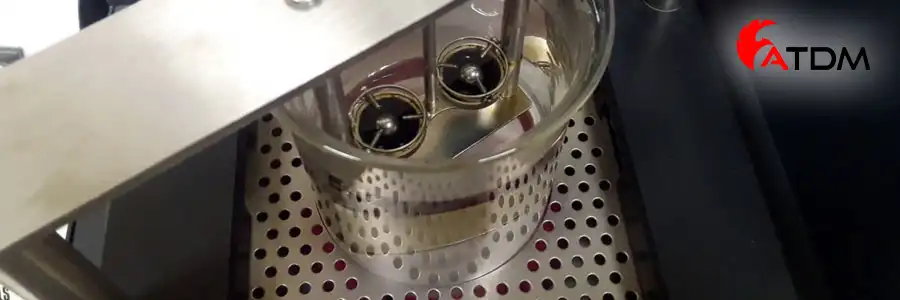

Ring and Ball Test Method
The Ring and Ball test is the standard procedure for determining the softening point of bitumen.
International standards such as ASTM D36 and EN 1427 define the testing method and conditions.
Equipment Used in the Test
The apparatus includes:
Brass rings
Steel balls
Heating bath
Thermometer
Support frame
Glass beaker
These tools help maintain consistent testing conditions and accurate temperature readings.
Step-by-Step Testing Procedure
The process follows several important steps:
Heat the bitumen sample.
Pour the material into brass rings.
Allow the sample to cool.
Place steel balls on the bitumen surface.
Heat the water or glycerin bath gradually.
Record the temperature when softened bitumen touches the bottom plate.
This temperature becomes the official softening point result.
Standard Testing Guidelines
Testing standards ensure reliable and repeatable measurements. Laboratories usually follow:
AASHTO T53
EN 1427
IS 1205
These standards guarantee consistency across global construction projects.
Factors Affecting the Softening Point of Bitumen
Several variables influence the softening point value.
Crude Oil Source
Different crude oil compositions produce bitumen with varying thermal properties. Some crude sources naturally generate harder bitumen with higher softening temperatures.
Bitumen Grade
Each bitumen grade has unique characteristics. Harder grades generally show higher softening points than softer grades.
For example:
| Bitumen Grade | Typical Softening Point |
|---|---|
| 60/70 Penetration Grade | 49°C – 56°C |
| 80/100 Penetration Grade | 42°C – 52°C |
| Oxidized Bitumen 85/25 | 140°C – 150°C |
Polymer Modification
Polymer modified bitumen contains additives that improve elasticity and thermal stability.
Consequently, polymer modification increases:
Softening point
Rutting resistance
Fatigue life
Pavement flexibility
Aging and Oxidation
Over time, oxidation hardens bitumen and raises the softening point. Although this process increases stiffness, excessive aging may reduce flexibility and cause cracking.
Types of Bitumen and Their Softening Points
Different applications require different bitumen properties.
Penetration Grade Bitumen
Penetration grade bitumen is widely used in road construction. It balances flexibility and heat resistance effectively.
Common grades include:
Bitumen 40/50
Bitumen 60/70
These grades typically show moderate softening points suitable for highways and urban roads.
Oxidized Bitumen
Manufacturers produce oxidized bitumen by blowing air through hot bitumen. This process significantly increases the softening point.
Oxidized bitumen works well in:
Roofing
Waterproofing
Pipe coating
Insulation systems
Polymer Modified Bitumen
Polymer modified bitumen offers superior performance under heavy traffic and extreme temperatures.
Its advantages include:
Higher elasticity
Better crack resistance
Improved thermal stability
Enhanced durability
Therefore, airports and expressways frequently use polymer modified asphalt.
Softening Point vs Penetration Test
The penetration test measures hardness, while the softening point measures heat resistance.
Although both tests evaluate consistency, they provide different information.
| Property | Penetration Test | Softening Point Test |
|---|---|---|
| Measures | Hardness | Temperature Sensitivity |
| Unit | 0.1 mm | °C |
| Main Purpose | Consistency | Thermal Stability |
Together, these tests help engineers select the right binder for construction projects.
Softening Point of Asphalt and Pavement Stability
Asphalt mixtures depend heavily on bitumen performance. If the binder softens too quickly, pavement deformation increases rapidly.
A higher softening point improves:
High-temperature performance
Pavement life
Heavy load resistance
Surface stability
Therefore, hot climate regions require harder bitumen grades with elevated softening temperatures.
Temperature Susceptibility of Bitumen
Temperature susceptibility describes how rapidly bitumen changes consistency with temperature fluctuations.
Bitumen with low temperature susceptibility performs better because it maintains stable properties across varying weather conditions.
Engineers often combine:
Softening point
Penetration index
Viscosity data
to evaluate thermal performance accurately.
Applications of High Softening Point Bitumen
High softening point bitumen serves many industrial purposes.
These applications include:
Airport runways
Heavy-duty highways
Roofing membranes
Waterproofing systems
Industrial flooring
Bridge decks
Pipe coatings
Because these environments experience severe heat exposure, thermal stability becomes essential.
Quality Standards and International Specifications
Global standards help maintain consistency and safety in bitumen production.
Important organizations include:
AASHTO
EN Standards
ISO
BIS
These organizations define testing methods, grading systems, and quality requirements for bituminous materials.
Why Choose ATDM as a Bitumen Supplier
Choosing a reliable supplier ensures consistent quality and project success. ATDM supplies premium-grade bitumen products for road construction, waterproofing, and industrial applications worldwide.
ATDM focuses on:
International quality standards
Reliable product consistency
Competitive pricing
Global export services
Technical support
High-performance bitumen grades
In addition, ATDM provides various bitumen products, including penetration grade bitumen, oxidized bitumen, and polymer modified bitumen for different industrial requirements.
For more industry information, you can also visit ASTM International.
Frequently Asked Questions
What is the softening point of bitumen?
The softening point is the temperature at which bitumen softens enough for a steel ball to fall through it under standard laboratory conditions.
Why is the softening point important in asphalt?
It determines the heat resistance and temperature stability of asphalt pavements.
What test measures the softening point of bitumen?
The Ring and Ball test measures the softening point according to ASTM and EN standards.
Does higher softening point mean better bitumen?
Not always. The ideal softening point depends on climate, traffic load, and application requirements.
What is the difference between penetration and softening point?
Penetration measures hardness, while the softening point measures thermal behavior.
Which bitumen has the highest softening point?
Oxidized bitumen and polymer modified bitumen generally have the highest softening temperatures.
Conclusion
The softening point of bitumen remains one of the most critical properties in road engineering and industrial applications. It helps engineers evaluate temperature resistance, pavement stability, and long-term durability.
By understanding thermal behavior, construction professionals can select the right bitumen grade for different climates and traffic conditions. Moreover, proper testing ensures safer roads, longer pavement life, and improved structural performance.
As global infrastructure demands continue growing, high-quality bitumen becomes even more important. Reliable suppliers like ATDM help industries access premium-grade bitumen products that meet international standards and deliver consistent performance.
